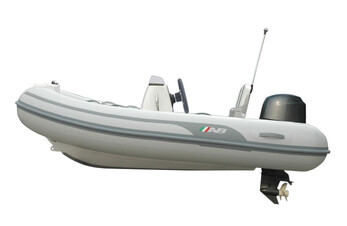

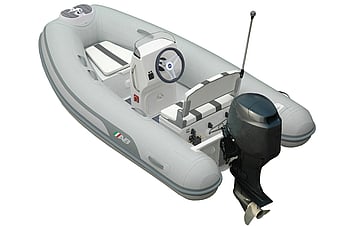

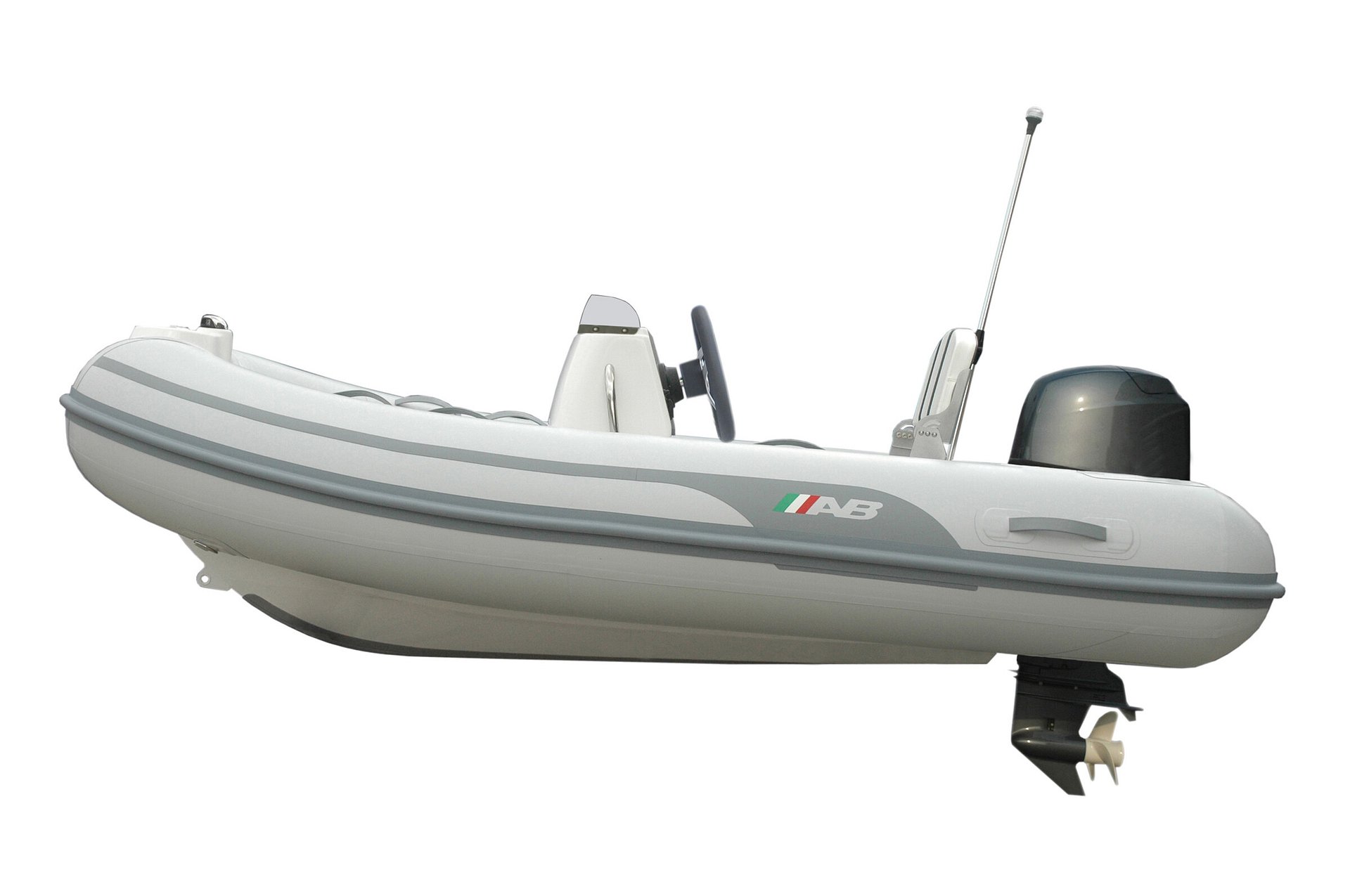

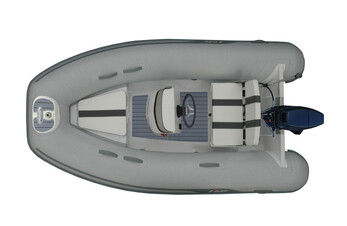

ALUMINX 9.5 ALX

Designed with the aquatic adventurer in mind, the Alumina sport console RIB is the most complete aluminum console boat on the market. Its high-quality aluminum hulls make it durable enough to withstand all sorts of terrain, allowing you to confidently make your way through coral reefs, rivers and lakes in style and comfort.

STANDARD FEATURES

Deep “V” Marine GRADE Aluminium Hull

Stringer System Welded under Aluminium Deck

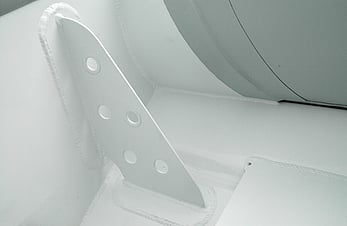

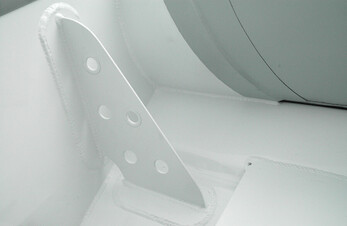

Heavy Duty Transom Knees

Non-Skid Rubber Floor Panels

Plastic External Transom Plate

Aluminium Internal Transom Plate

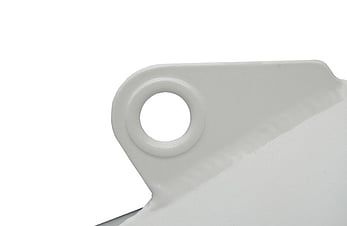

Aluminium Bow Eye

4 Aluminium Davit Lifting Points

Aluminium Transom Tie Down & Towing Rings

Aluminium Bow Tie Down & Towing Rings

Deck Drain with Plug

Orca (CSM) Five Layer Coated Hypalon Fabric

Bench Seat with Storage

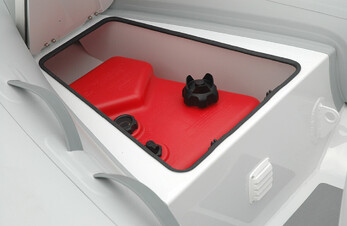

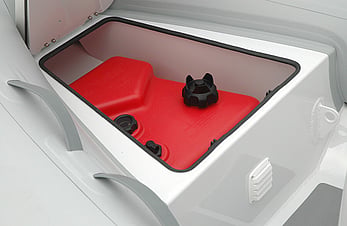

Bow Locker/Seat with Vent & Storage to Fit a 3 Gal Portable Fuel Tank

Raised Single Rub Rail

Push Push Plastic Non-Corrosive 2 Stage Inflation Valves

1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes

2 Inside Bow Sets of Double Orca (CSM) Fabric Handles on Tubes

2 Inside Stern Single Orca (CSM) Fabric Handles on Tubes

Hand Pump

Maintenance Kit

Owner's Manual

Closed Cell Foam Upholstery

Fiberglass Console Small

Bow Hatch Cushion

Console Access Lid

360° White Anchor Light Pole

Stainless Steel Console Grab Rail

Battery Box

Battery Switch

Fuel and Water Separator Filter

Mechanical Steering System

Stainless Steel Steering Wheel

Complete Tin Wiring & Heat Shrink Sealed Terminals

3 Layers Reinforced Seams

Rubber Protector on Full Length of Keel

SPECIFICATIONS

Model	9.5 ALX
Overall Length	9' 6" / 2.90m
Overall Beam	5' 6" / 1.68m
Inside Length	6' 11" / 2.11m
Inside Beam	2' 6" / 0.76m
Tube Diameter	17" / 0.43m
Number of Chambers	3
Person Capacity	5
Weight	236 lbs / 107kg
Recommended HP	15HP
Maximum HP	25HP
Shaft Length	20" / 50.8cm
RDC Design Category	C
