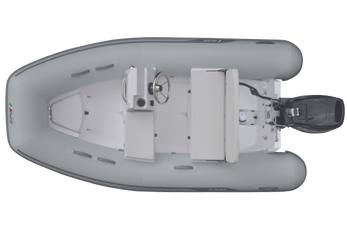

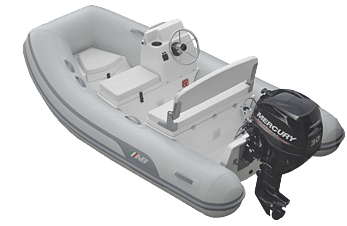

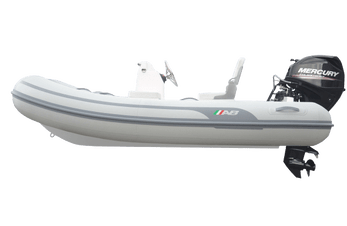

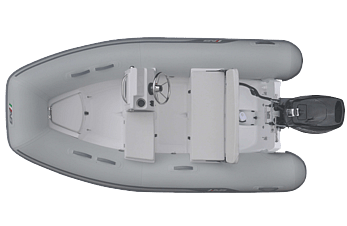

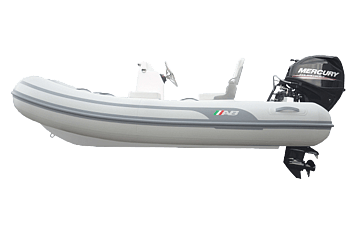

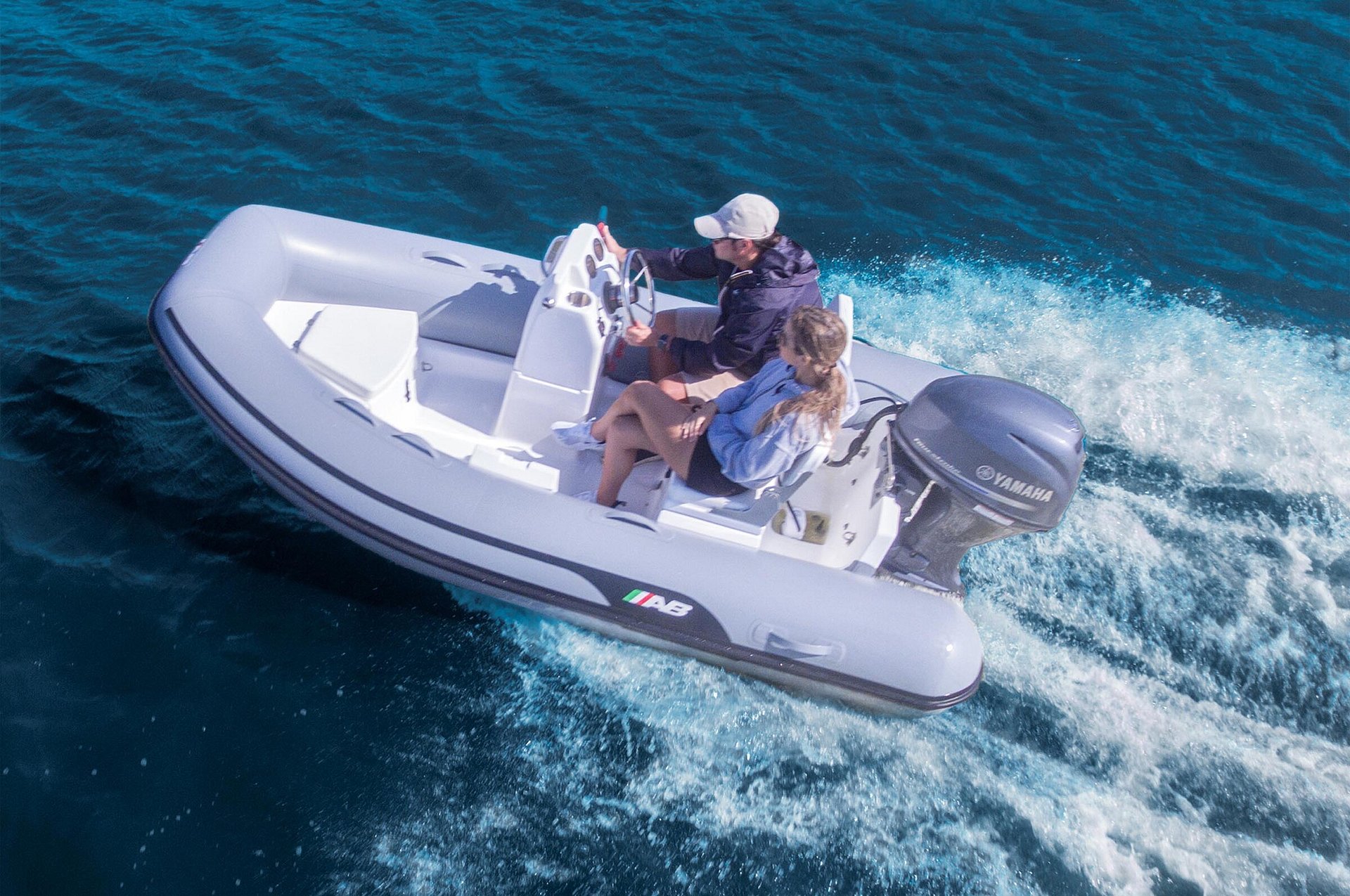

MARES 10 VSX
The Mares tender features a durable fiberglass hull designed for extra stability and superior handling and in addition, its deck is made from a single molded-in fiberglass deck for quiet navigation and greater durability. It guarantees a smooth, dry ride, and though lightweight, its durable construction ensures years of dependable service.
STANDARD FEATURES
Hand Laid Fiberglass Deep “V” Hull
Stringer System Laminated into Hull
Diamond Shape Non-skid Deck
Plastic External Transom Plate
Aluminum Internal Transom Plate
1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
1 Port Inside Transom Orca (CSM) Fabric Handles on Tubes
2 Inside Bow Sets of Double Orca (CSM) Fabric Handles on Tubes
Raised Single Rub Rail
Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
4 Stainless Steel Davit Lifting Points
Stainless Steel Bow Eye
Orca (CSM) Five Layer Coated Fabric
Hand Pump
Maintenance Kit
Owner's Manual
Closed Cell Foam Upholstery

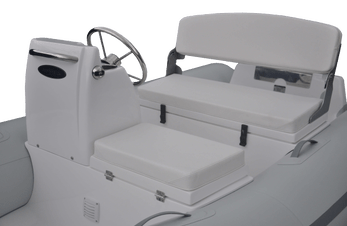

New Integrated Fiberglass Console with Cupholder & Lateral Seat with Cushion
Foldable Console
Integrated Stern Seat with Storage
2 Deck Drain
Bow Locker/Seat
Bow Hatch Cushion
Console Front Access Lid
LED Navigation Side Lights
Stainless Steel Tow Rings & Tie Downs
Stainless Steel Console Grab Rail
Hull Drain with Plug
2 Waterproof Rocker Switches with Circuit Brakers
Battery Box
Battery Switch
Fuel and Water Separator Filter
Automatic Bilge Pump 500 GPH
Mechanical Steering System

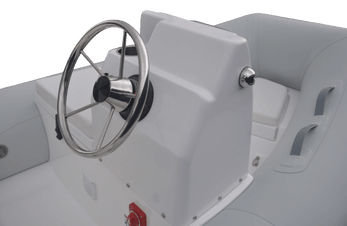

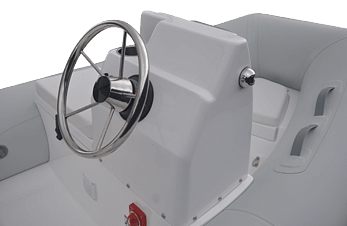

Stainless Steel Steering Wheel
Complete Tin Wiring & Heat Shrink Sealed Terminals
3 Layers Reinforced Seams
360° White Light Navigation Pole
SPECIFICATIONS
Overall length: 10' 6" / 3,19m
Overall Beam: 5' 7" / 1,72m
Inside Length: 7' 7" / 2,31m
Inside Beam: 2' 8" / 0,81m
Tube Diameter: 17" / 0,43m
Number of Chambers: 3
Person Capacity: 4
Weight: 287lbs / 130kg
Recommended HP: 25hp / 18,7kw
Maximum HP: 30hp / 22,4kw
Shaft Length: 15’’ - 20" / 38,1cm - 50.8cm
RDC Design Category: C
Please note photos are indicative only and may show additions not included in standard features. Errors and omissions excepted.
