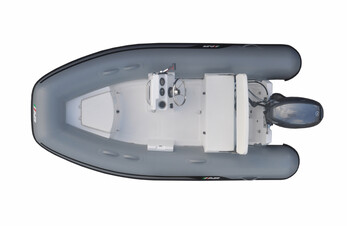

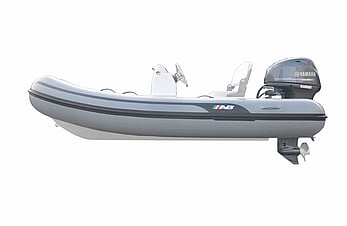

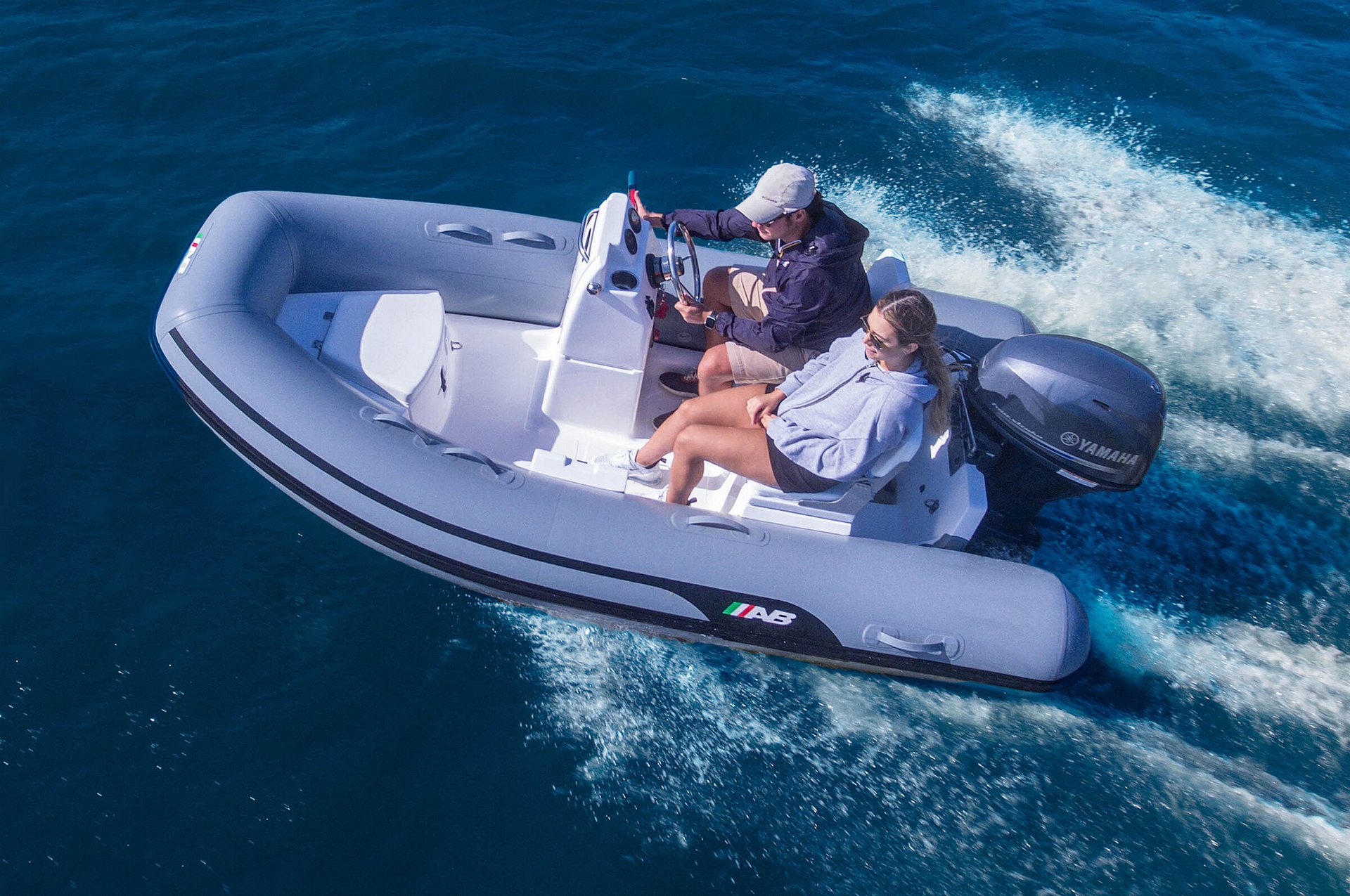

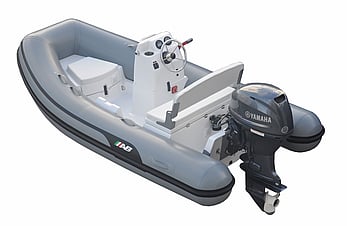

MARES 11 VSX
The Mares tender features a durable fiberglass hull designed for extra stability and superior handling and in addition, its deck is made from a single molded-in fiberglass deck for quiet navigation and greater durability. It guarantees a smooth, dry ride, and though lightweight, its durable construction ensures years of dependable service.
STANDARD FEATURES
Hand Laid Fiberglass Deep “V” Hull
Stringer System Laminated into Hull
Diamond Shape Non-skid Deck
Plastic External Transom Plate
Aluminum Internal Transom Plate
1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
1 Port Inside Transom Orca (CSM) Fabric Handles on Tubes
2 Inside Bow Sets of Double Orca (CSM) Fabric Handles on Tubes
Raised Single Solid Rub Rail
Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
Automatic Bilge Pump 500 GPH
Mechanical Steering System
Orca (CSM) Five Layer Coated Fabric
Hand Pump
Maintenance Kit
Owner's Manual
Closed Cell Foam Upholstery

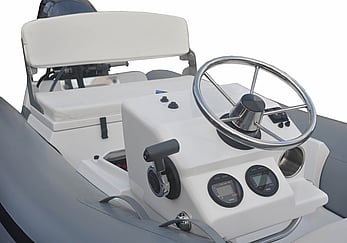

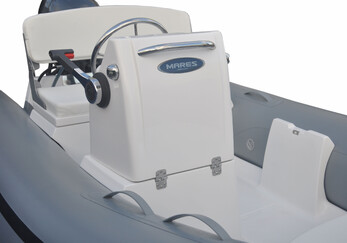

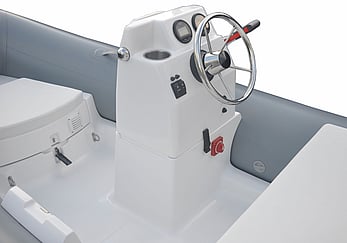

Fiberglass Console with Cup Holder & SS Grab Handle
Foldable console
Integrated Stern Seat with Storage
Removable Lateral Seat
2 Deck Drain

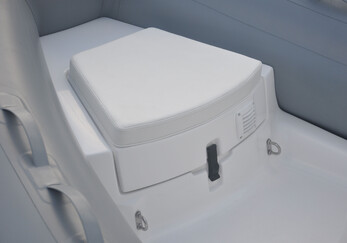

Bow Locker/Seat
Bow Hatch Cushion
Automatic Bilge Pump 500 GPH
3 Layers Reinforced Seams

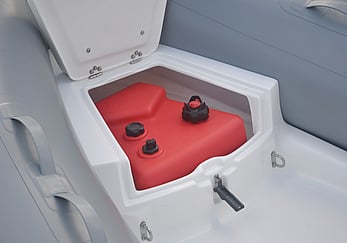

Bow Locker Storage to Fit 6 Gal Portable Fuel Tank
LED Navigation Side Lights
360° White Light Navigation Pole
4 Stainless Steel Davit Lifting Points
Stainless Steel Bow Eye
Stainless Steel Tow Rings & Tie Downs
Stainless Steel Gas Springs
Hull Drain with Plug
2 Waterproof Rocker Switches with Circuit Brakers

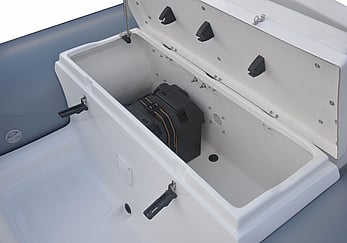

Battery Box
Battery Switch
Fuel and Water Separator Filter
Complete Tin Wiring & Heat Shrink Sealed Terminals
SPECIFICATIONS
Overall length: 11´4"/ 3.45m
Overall Beam: 5´9"/ 1.77m
Inside Length: 8´ 1"/ 2.47m
Inside Beam: 2´8”/ 0.81m
Tube Diameter: 18'' / 0,46m
Number of Chambers: 3
Person Capacity: 4
Weight: 317lbs / 144kg
Recommended HP: 30hp / 22,4kw
Maximum HP: 40hp / 29,8kw
Shaft Length: 20’’ / 50,8cm
RDC Design Category: C
Please note photos are indicative only and may show additions not included in standard features. Errors and omissions excepted.
