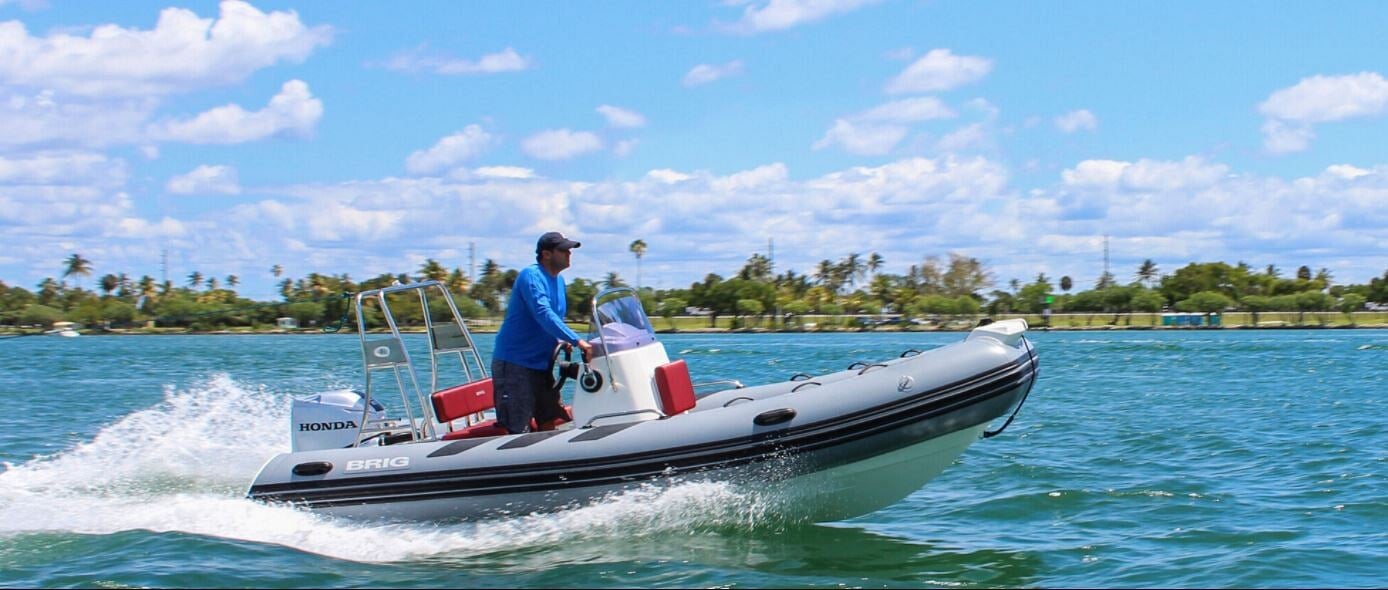

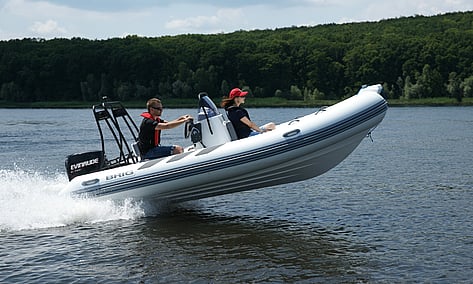

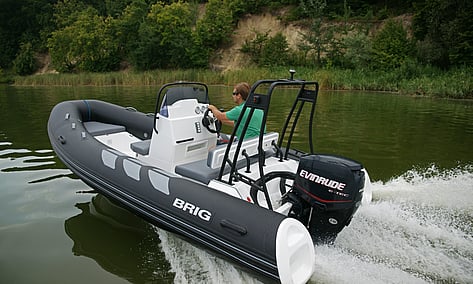

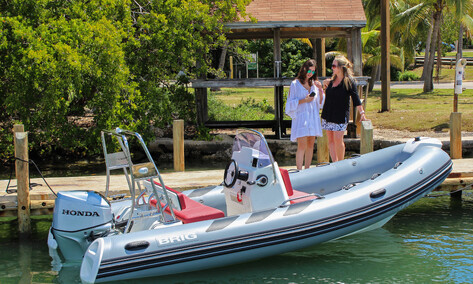

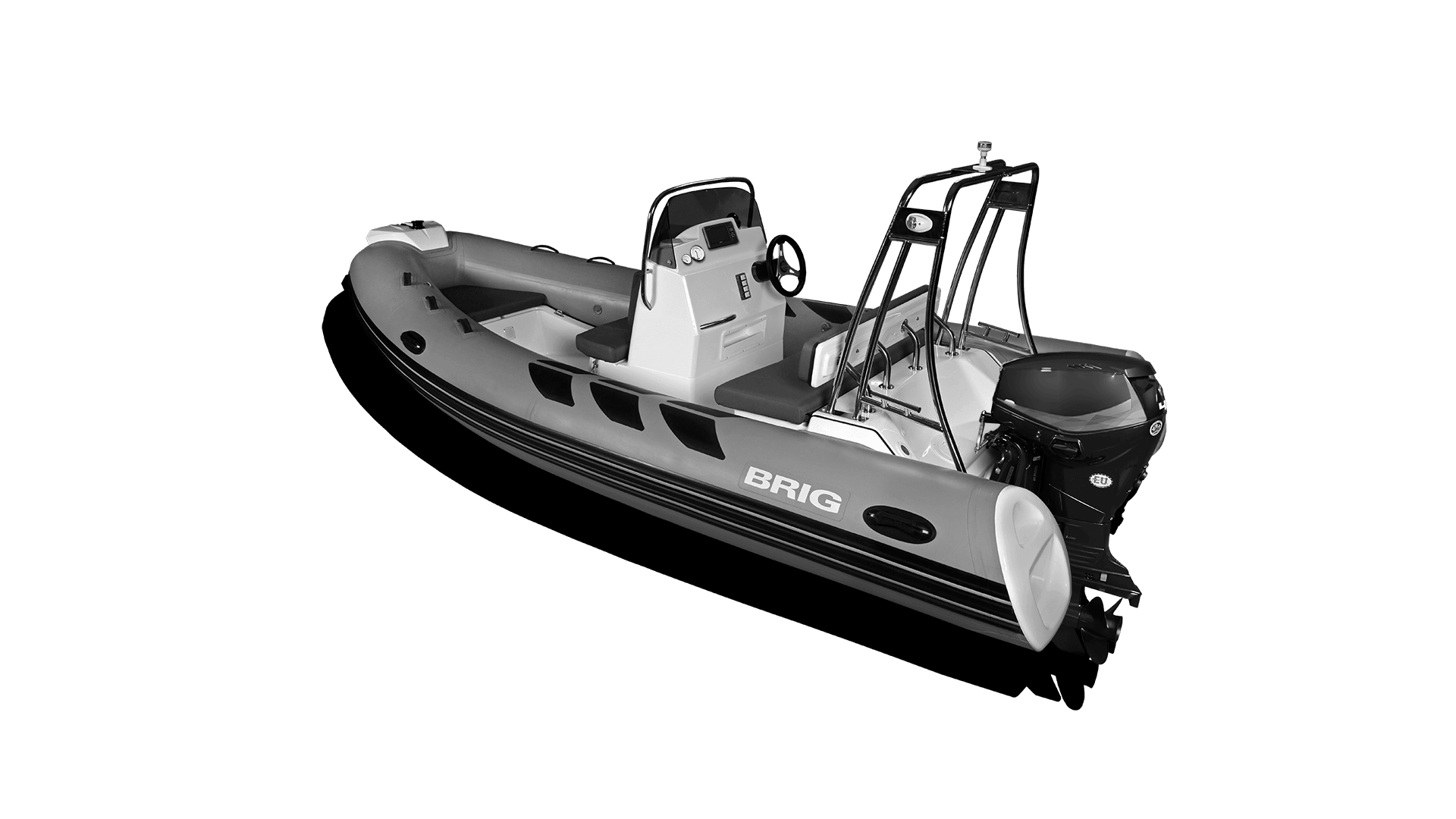

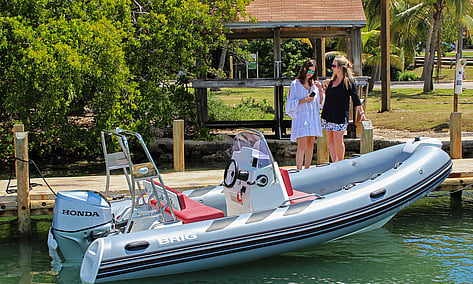

BRIG NAVIGATOR 485
The Navigator 485 is an ideal support boat for a sailing fleet, as well as a safe and affordable option for fun with family and friends.
The Navigator 485 retains the generous 230cm beam of its larger siblings. Along with the square bow and extra-wide tubes this provides exceptional sea-keeping capabilities and superb stability—the dry and comfortable ride that you can expect from BRIG.
STANDARD FEATURES
Deep V hull
Antiskid deck surface
Front and rear stowage lockers
Hull ventilation system
Twin self-bailing unit
Built in fuel tank with external deck filler
Front step plate
Front towing bow ring
Rear cleats (bollards)
Built-in davit lifting points
Rubbing strake
Safety handles & carrying handles
Two paddles & foot pump
Tube repair kit
Accessories bag
Owner’s manual

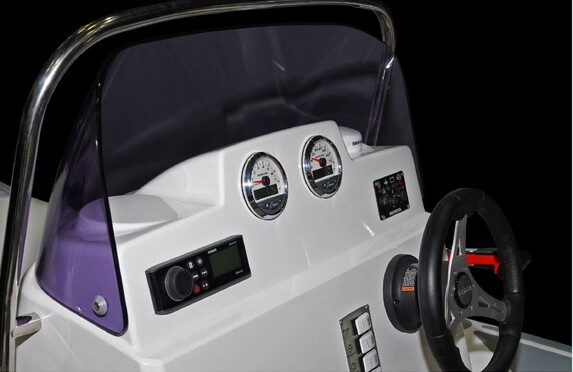

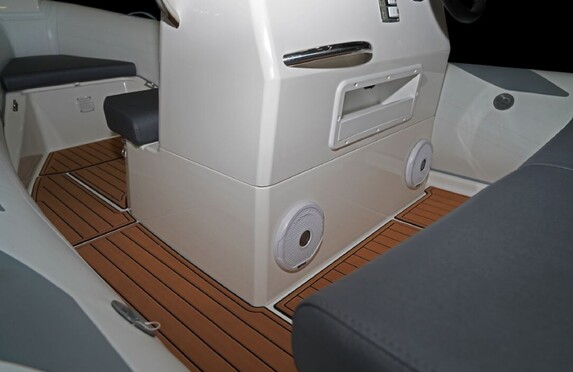

Steering console
Steering system (mechanical)
Steering wheel
Automatic bilge pump
Battery container
Battery isolation switch
Fuel gauge
Rear towing points

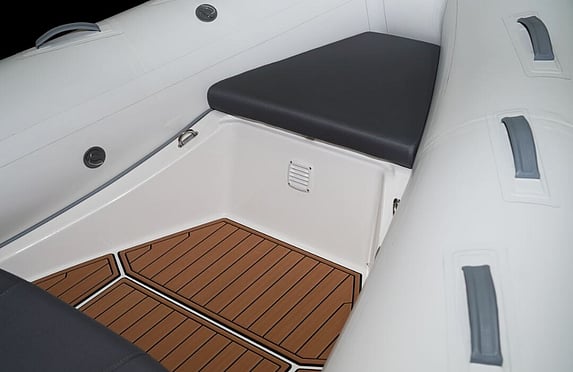

Front locker removable cushion

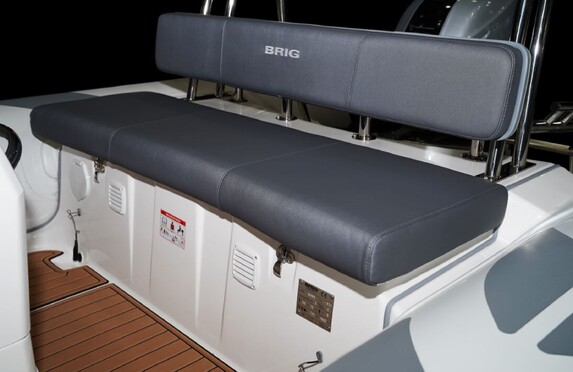

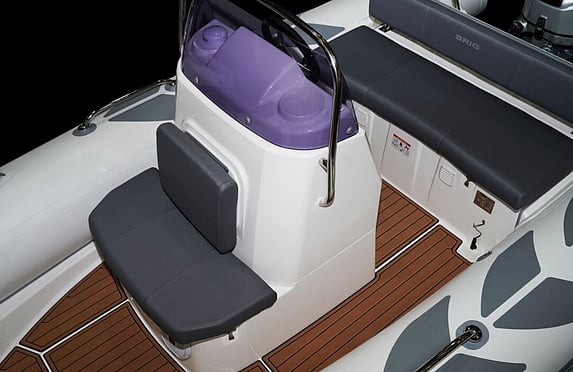

Rear cushion with soft back
Hypalon ORCA Fabric
SPECIFICATIONS
Length: 485 cm
Width: 230 cm
Height: 190 cm
Tube diameter: 50 cm
No. of chambers: 5
No. of persons: 8
Fuel tank: 67 L
Weight of empty boat: 380 kg
Max load (rec.): 905 kg
Minimum power: 40 HP
Recommended power: 60 HP
Maximum power: 75 HP
Design category: C
Engine shaft length: 20"
