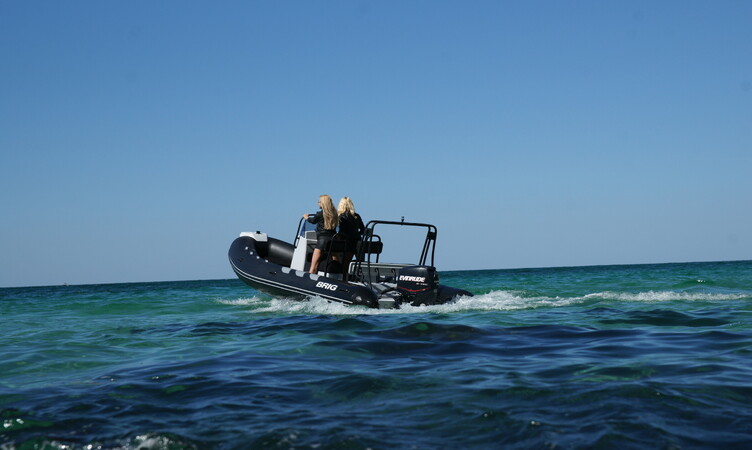

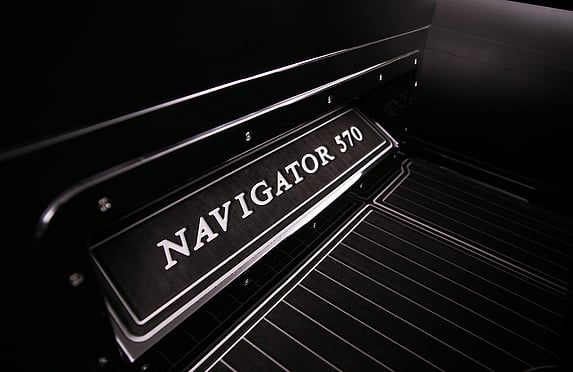

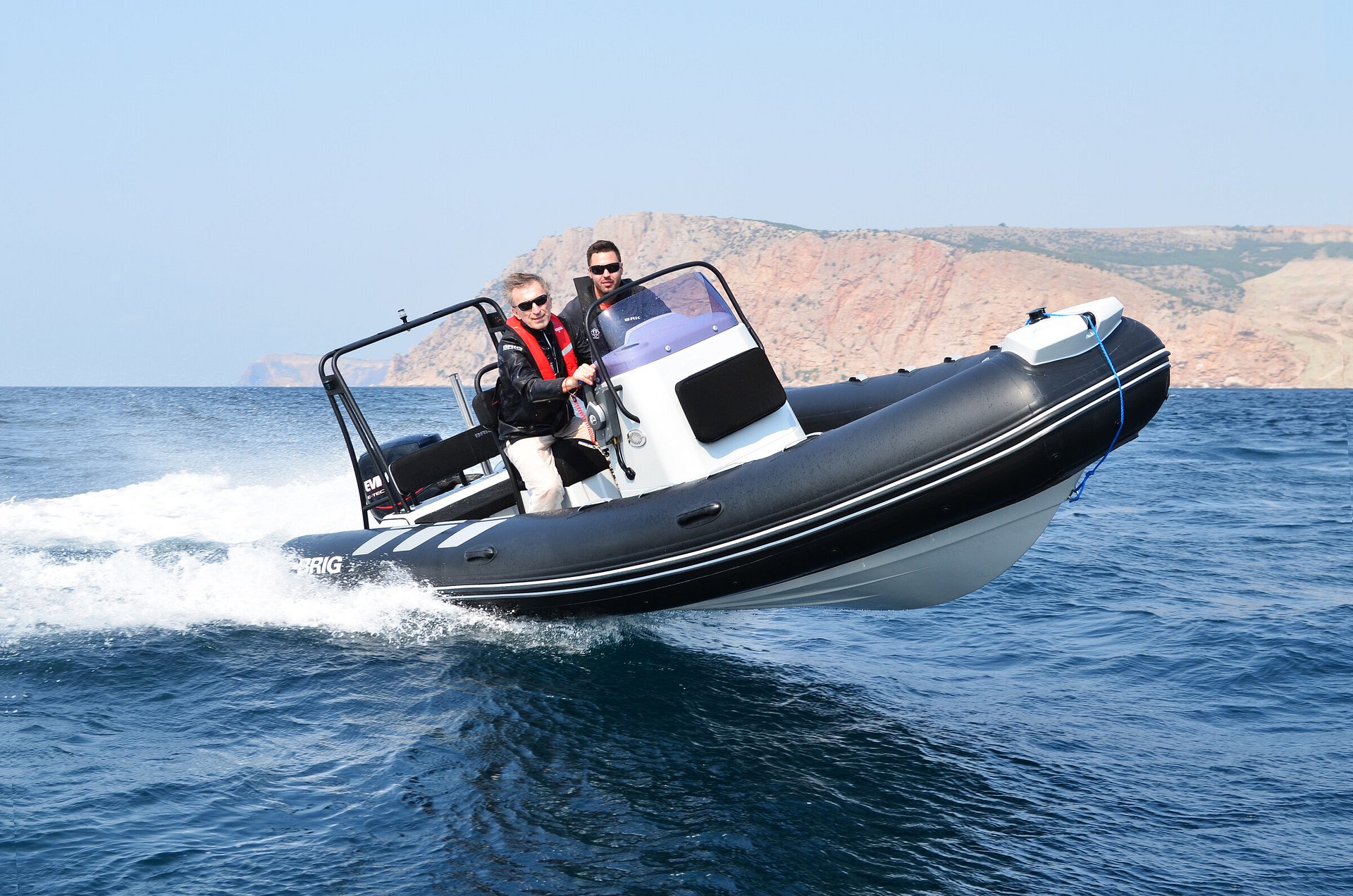

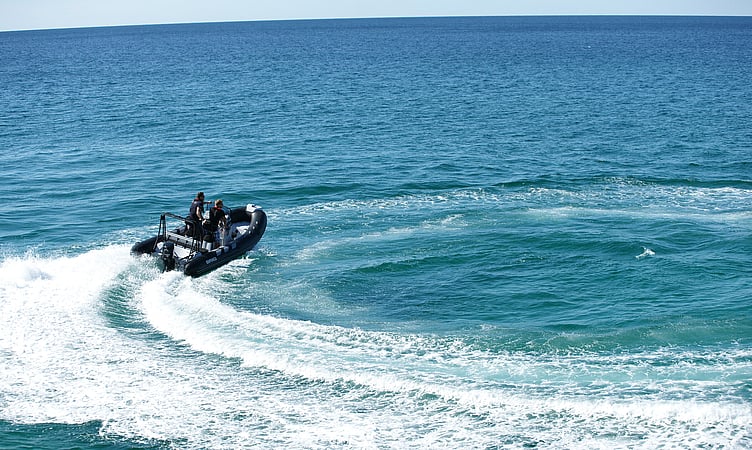

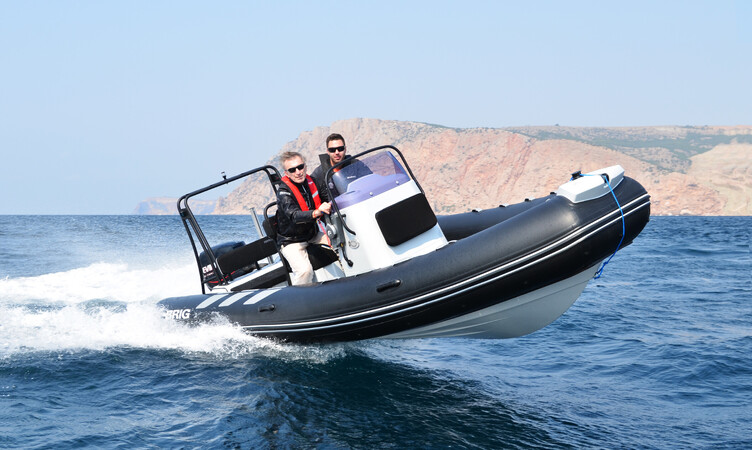

BRIG NAVIGATOR 570

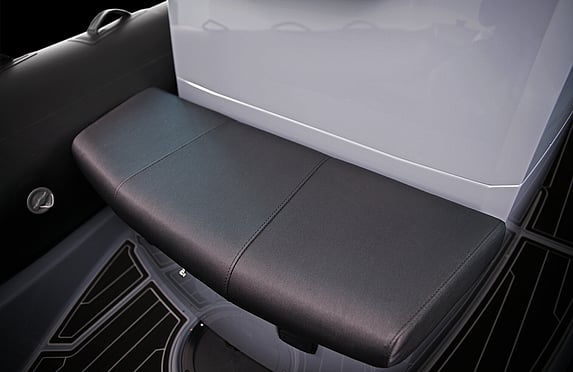

The Navigator 570 is a development of the hugely successful tried and tested Falcon 570. Using the proven hull and tube design of the Falcon 570 the Navigator boasts some clever new developments. The newly designed splash-back well incorporates a large rear watersports locker with bench seat over.
STANDARD FEATURES
Deep V hull
Antiskid deck surface
Front and rear stowage lockers
Hull ventilation system
Twin self-bailing unit
Built in fuel tank with external deck filler
Front step plate
Front towing bow ring
Rear cleats (bollards)
Built-in davit lifting points
Rubbing strake

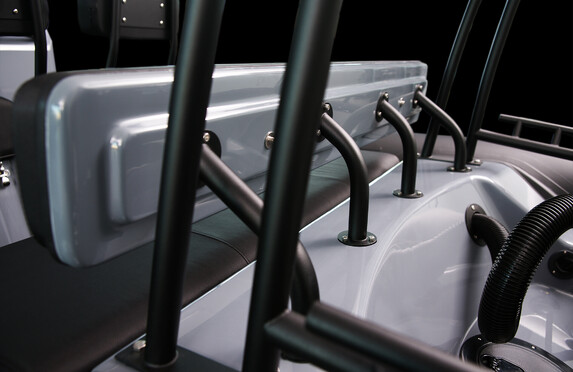

Safety handles & carrying handles
Two paddles & foot pump
Tube repair kit
Accessories bag
Owner’s manual

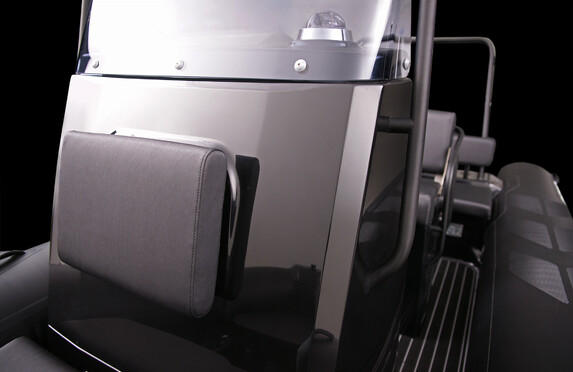

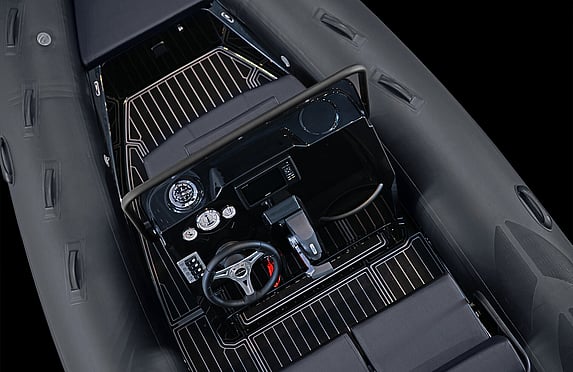

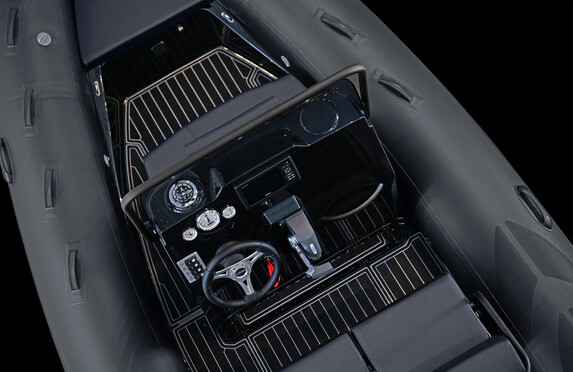

Steering console

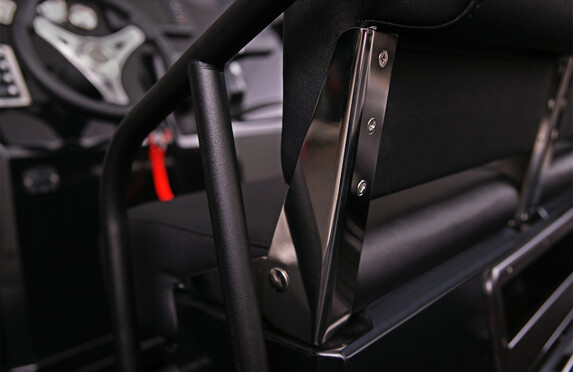

Pilot bolster seat
Steering system (mechanical)

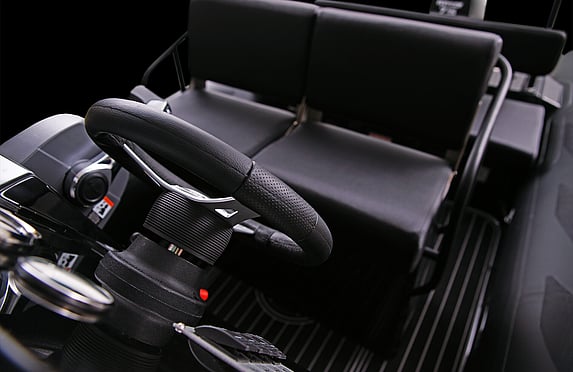

Steering wheel
Automatic bilge pump
Battery container
Battery isolation switch
Fuel gauge
Wake/ski towing point

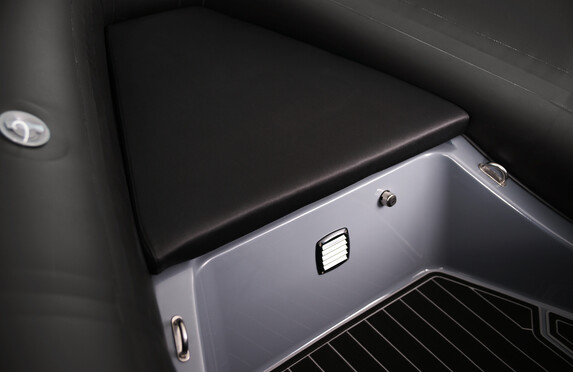

Front locker removable cushion
Rear cushion with soft back

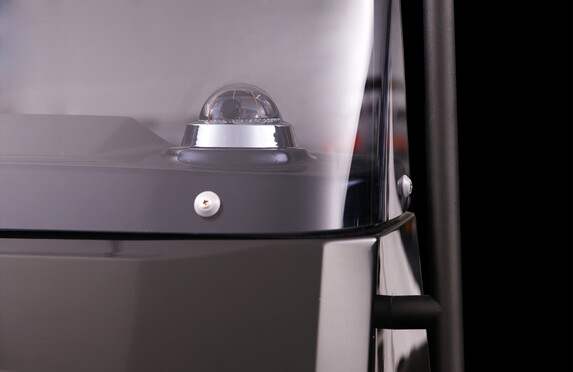

Stainless steel arch with navigation lights
Hypalon ORCA Fabric
SPECIFICATIONS
Length: 570 cm
Width: 230 cm
Height: 190 cm
Tube diameter: 50 cm
No. of chambers: 5
No. of persons: 9
Weight of empty boat: 480 kg
Engine shaft length: 20"
Fully equipped weight: 785 kg
Maximum load (rec.): 1040 kg
Minimum power: 75 HP
Recommended power: 90 HP
Maximum power: 120 HP
Design category: C
Fuel tank capacity: 98 L
