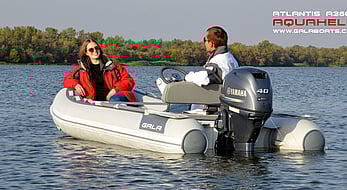

AQUAHELM
The AQUAHELM for GALA boats is THE IDEAL SOLUTION if you are looking for the lightest tender with console steering.
Three GALA models can be equipped with the AQUAHELM S-08 steering console & seat combo, an innovative design from GALA.
STANDARD FEATURES
Medium-V, powder-coated aluminium hull with antiskid decking and hidden reinforced transom brackets
«GALA TABS» - special patented GALA hull design with transom extensions
Spacious bow locker with access hatch
Soft bow locker cushion with close cell foam

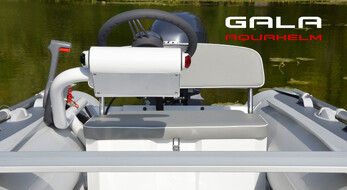

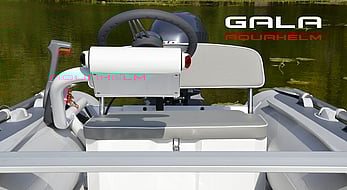

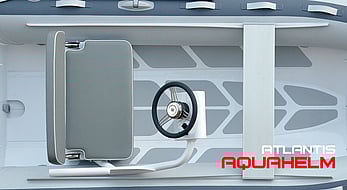

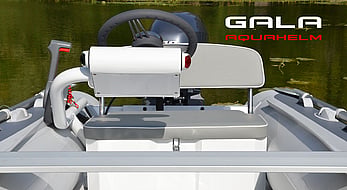

AQUAHELM S-08 double seat with steering arm, soft cushion, folding set back and storage

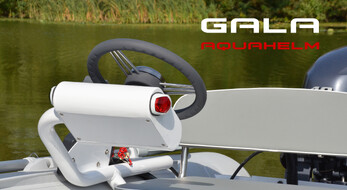

Steering wheel with steering cable and wheel
One aluminium seat with sliding installation system
Substantial keel protector
4 lifting eyes and 3 towing bow eyes
Bow handle and two rear handles
GALA bow cleat and 8/10 grab handles
Soft curved 3-chamber PVC or Hypalon buoyancy tube with rounded bow and original «GALA-JET» design
Overpressure valve
Tough rubbing strake with splash guard
One-way drain valve with pull-up handle
Two collapsible paddles
High-efficiency foot pump
Repair kit and manual
SPECIFICATIONS
| Model | A300Q | A330Q | A360Q |
| Length overall, cm / ft-inches: | 300 cm / 9' 10'' | 330 cm / 10' 10'' | 360 cm / 11' 10'' |
| Length inside, cm / ft-inches: | 222 cm / 7' 3'' | 252 cm / 8' 3'' | 282 / 9' 3'' |
| Width overall, cm / ft-inches: | 170 cm / 5' 7'' | 170 cm / 5' 7'' | 170 cm / 5' 7'' |
| Width inside, cm / ft-inches: | 82 cm / 2' 8'' | 82 cm / 2' 8'' | 82 cm / 2' 8'' |
| Tube diameter, cm / inches: | 44 cm / 17'' | 44 cm / 17'' | 44 cm / 17'' |
| Bare Boat weight, kg / lbs: | 72 kg / 158 lbs | 82 kg / 180 lbs | 92 kg / 202 lbs |
| Loading capacity, kg / lbs: | 500 kg / 1100 lbs | 550 kg / 1210 lbs | 600 kg / 1320 lbs |
| Passengers capacity: | 5 | 5 | 6 |
| Number of chambers: | 3 | 3 | 3 |
| Engine recommended, HP: | 10 | 15 | 20 |
| Engine max, HP: | 15 | 20 | 25 |
| Engine weight max, kg / lbs: | 60 kg / 132 lbs | 80 kg / 176 lbs | 80 kg / 176 lbs |
| Engine shaft length, inches: | 15"(short) | 15"(short) | 15"(short) |
Please note photos are indicative only and may show additions not included in standard features
Errors and omissions excepted.
