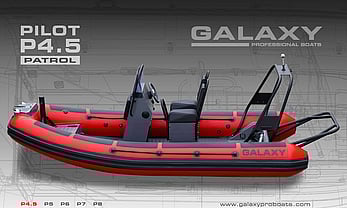

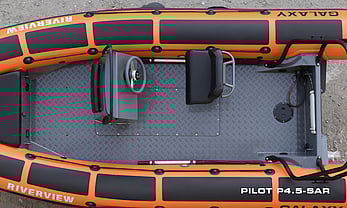

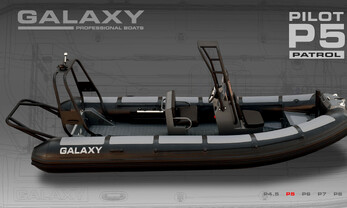

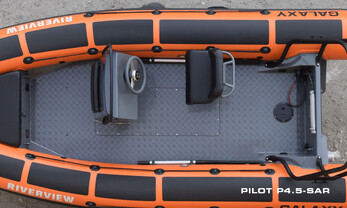

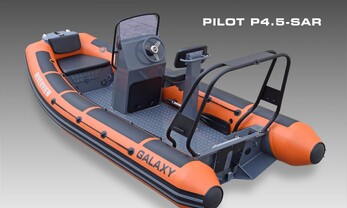

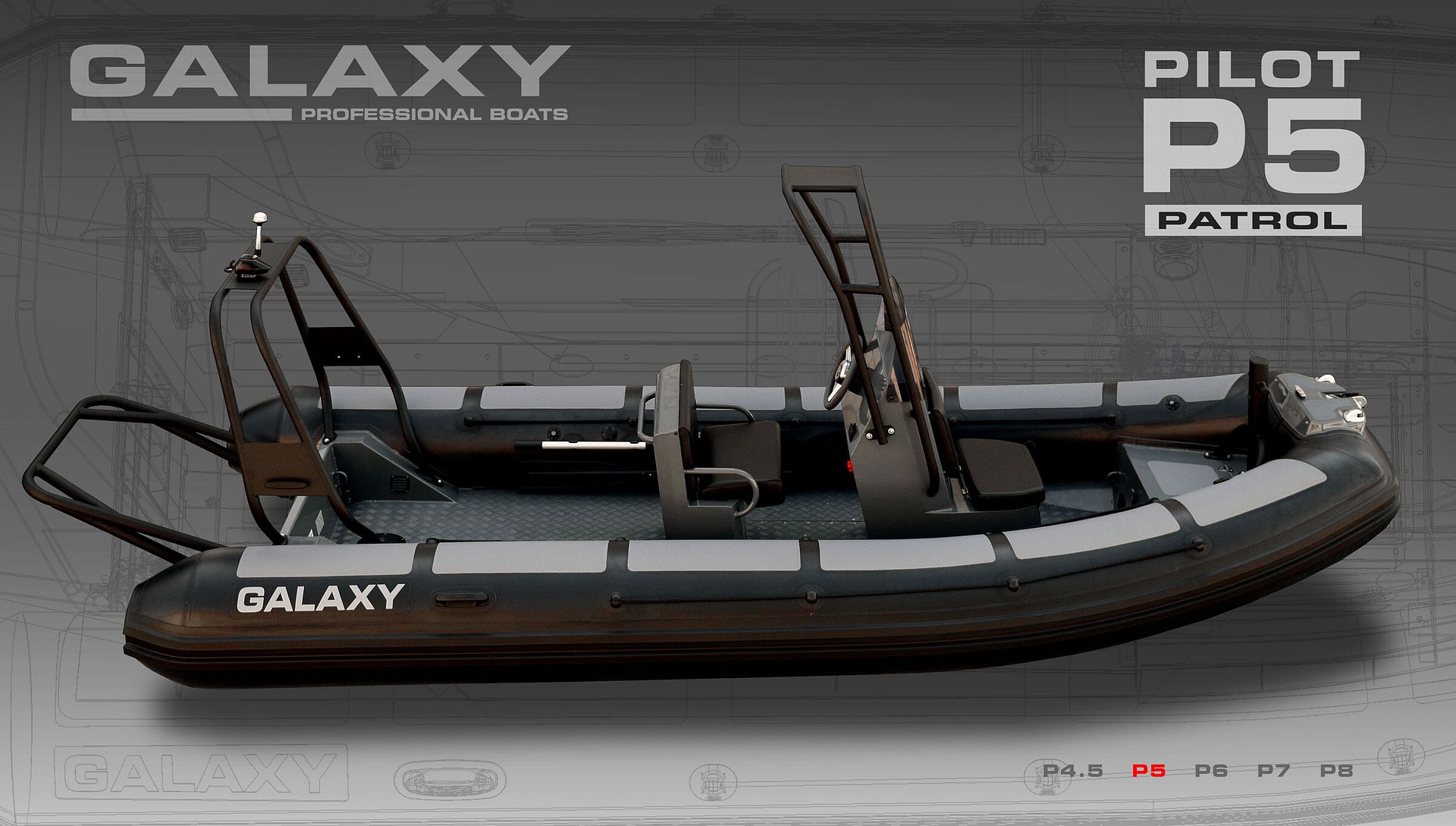

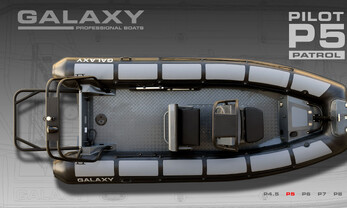

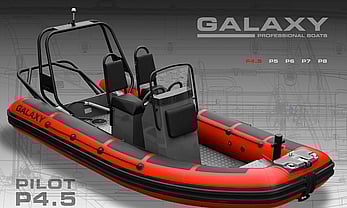

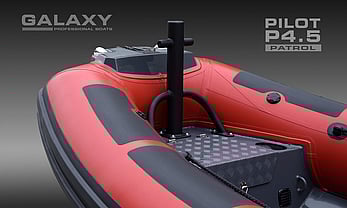

GALAXY PILOT P4.5 AND P5

GALAXY Pilot P4.5 and Pilot P5 are two mid-size Professional RIBs, smallest in GALAXY range: P4.5 is 450 cm (14’9”) long and P5 is 500 cm (16’5”) long.

Both models are created for Patrol, Law Enforcement, Search and Rescue (SAR), Commercial use and much more in inland and sea costal waters. They are light and easy to transport, so they are great when mobility is needed.

STANDARD FEATURES

Aluminium PRO hull with welded keel guard, coated

Embossed antiskid QUINTET PRO decking

GALA -TABS performance transom extensions

PVC inflatable tube with PRO-grade doubled rubrail, protection pads, lifeline, handles

Overpressure valves

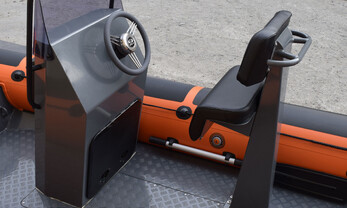

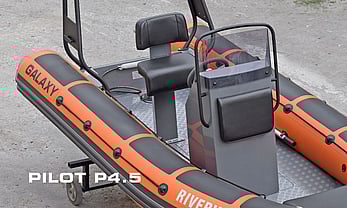

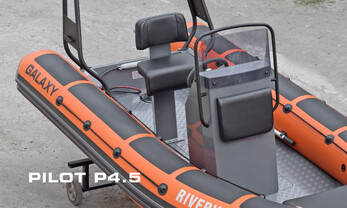

Steering console C-04P with front seat, windshield and tailing

Driver's seat: S-04P

Set of foot pump, 2 paddles and repair/service kit

Steering and Seating Options:

Steering console C-09 , high, without front seat

Driver's jockey seats S-10

Bolster seat S12 , deck mount, with back rest

SPECIFICATIONS

Model	P4.5	P5
Length overall, cm / ft-inches:	450 cm / 14'9"	500 cm / 16' 5''
Length inside, cm / ft-inches:	365 cm / 12' 0''	415 cm / 13' 7''
Width overall, cm / ft-inches:	215 cm / 7' 1''	215 cm / 7' 1''
Width inside, cm / ft-inches:	111 cm / 3' 8''	111 cm / 3' 8''
Tube diameter, cm / inches:	52 cm / 20''	52 cm / 20''
Bare Boat weight, kg / lbs:	280 kg / 616 lbs	370kg / 814 lbs
Loading capacity, kg / lbs:	800 kg / 1760 lbs	1000 kg / 2200 lbs
Passengers capacity:	7	8
Number of chambers:	5	5
Engine recommended, HP:	50	70
Engine max, HP:	70	100
Engine weight max, kg / lbs:	130 kg / 286 lbs	180 kg / 396 lbs
Engine shaft length, inches:	20"(long)	20"(long)
